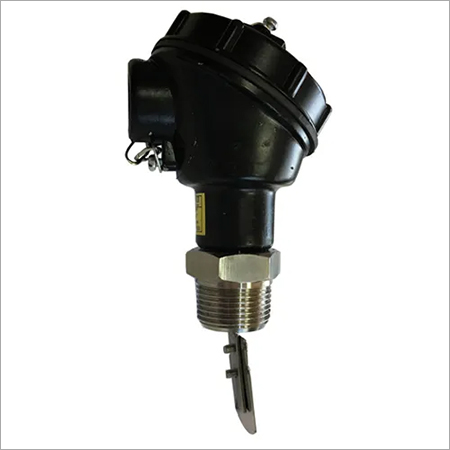

ATEX certified Paddle type Flow Switches

6500 INR/Piece

Get a Price/Quote

Product Details:

Max. Current 5A
Circuit Type SPDT
Response Time <1 second
Rated Voltage 250V AC
Temperature Range -20C to +80C
Finish Type Polished/Coated
Protection Level IP65 (ATEX II 2G Ex d IIC T6 Gb)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ATEX certified Paddle type Flow Switches Price And Quantity

Price 6500 INR/Piece
Minimum Order Quantity 1 Piece

ATEX certified Paddle type Flow Switches Product Specifications

Automation Grade Automatic
Weight Approx. 0.9-1.2 kg
Product Type ATEX certified Paddle type Flow Switches
Operating Temperature -20C to +80C
Mechanical Life >1,000,000 operations
Response Time <1 second
No Of Poles Single Pole
Protection Level IP65 (ATEX II 2G Ex d IIC T6 Gb)
Number of Module Single
Mounting Type Inline Threaded
Contact Resistance 50m
Stoke 5 mm (typical)
Max. Voltage 250VAC/30VDC
Finish Type Polished/Coated
Circuit Type SPDT
Max. Current 5A
Rated Voltage 250V AC
Current Rating 5A @ 250V AC
Insulation Resistance 100M (500VDC)
Temperature Range -20C to +80C

ATEX certified Paddle type Flow Switches Trade Information

Payment Terms Cheque
Supply Ability 1 Piece Per Day
Delivery Time 2 - 3 Week
Packaging Details Carton Box
Main Export Market(s) Western Europe, Asia, Australia, North America, Eastern Europe, Middle East, Central America, Africa, South America
Main Domestic Market All India

Product Description

WFSPT -General purpose

WP-FSPT -Weatherproof Flow Switches
EP-FSPT -Explosion proof Flow Switches to group IIA/IIB
GFP-FSPT -Flameproof Flow Switches to group IIC
WPFS -10R & WPFS-15R -Low Flow Paddle type Flow Switches
MFSPT -Magnetic Repulsion type Flow Switches
AFSPT -Air Flow Switches
AFSPT -Mini Air Flow Switches

Service	Liquids, Slurries, Air and Gases
Mounting	On Vertical or Horizontal Mounted pipe line
Line Size	For any pipe line size above 1/2"
Flow set point	Prefixed or, Field Adjustable
Paddle Material	SS
Sealing type	With SS Bellow or, without Bellow
Switch type	SPDT Micro switch (5A or, 15 A)
Repeatability	Better than +/- 1%
Accuracy	+/-2.0 %
Max. Working Pressure	10 bar
Max. Working Temperature	100 degree C

Note :To receive quick response, please provide your basic requirement details and max.Application information.

Exceptional Flame-Proof Construction

Built with cast aluminum or steel enclosures, these flow switches are designed to meet flame-proof standards, providing safety in explosive or hazardous atmospheres. Their ATEX II 2G Ex d IIC T6 Gb rating offers peace of mind when installed in industrial environments where flammable substances may be present.

Wide Compatibility and Automatic Operation

Engineered for compatibility with water and non-corrosive liquids, these paddle-type flow switches integrate easily into industrial processes. Automatic SPDT micro switches ensure reliable detection of flow rates from 1.0 to 8.0 m/s, enabling seamless process automation and control.

Reliable Design and Superior Protection

Equipped with IP65/IP66 ingress protection, robust PG cable gland or screw terminal connections, and a polished or coated finish, these switches resist dust and water ingress. Their mechanical life exceeds 1,000,000 operations, highlighting their durability and long-term performance in challenging environments.

FAQs of ATEX certified Paddle type Flow Switches:

Q: How do ATEX certified paddle-type flow switches function in hazardous environments?

A: These flow switches utilize flame-proof enclosures and ATEX certification to operate safely in environments where explosive gases may be present. The paddle mechanism detects liquid flow, activating a micro switch that sends a signal to your control system.

Q: What types of liquids are compatible with these paddle-type flow switches?

A: The switches are compatible with water and non-corrosive liquids, making them suitable for a variety of industrial process applications where chemical resistance is not a primary concern.

Q: When should I use an ATEX certified flow switch over a standard model?

A: ATEX certification is essential when installing equipment in hazardous environments, such as chemical plants or refineries, where explosive atmospheres could occur. The additional certification ensures compliance with safety regulations and minimizes risk.

Q: Where can these flow switches be installed?

A: They can be mounted inline using BSP or NPT threaded connections anywhere within a water or non-corrosive liquid pipeline system, provided the ambient temperature ranges between -20C and +60C.

Q: What is the electrical connection process for these devices?

A: Electrical connections are made via screw terminals or PG cable glands, providing secure and reliable wiring. Ensure proper insulation resistance (100M at 500VDC) during installation for safety and performance.

Q: How does the automatic switching feature benefit industrial operations?

A: The built-in SPDT micro switch delivers rapid response (under 1 second), allowing for automated control and immediate alerting in case of flow deviations, helping protect equipment and maintain process efficiency.
