Level Gauge - Pointer type

Level Gauge - Pointer type

Product Details:

  • Display Digital
  • Application Water Engineering Textile Industry Nuclear Power Engineering
  • Click to View more
X

Level Gauge - Pointer type Price And Quantity

  • 2900 INR
  • 1 Piece

Level Gauge - Pointer type Product Specifications

  • Digital
  • Water Engineering Textile Industry Nuclear Power Engineering

Level Gauge - Pointer type Trade Information

  • Cheque
  • 1 Piece Per Day
  • 2 - 3 Week
  • Carton Box
  • Central America North America South America Eastern Europe Western Europe Middle East Africa Australia Asia

Product Description

Level Gauge - Pointer type

Type

Range

Accuracy

Specification

Tubular Glass

0-300mm up to 0-1500 mm


Side Mounted Transparent Glass Tube for liquids

Reflex

150mm up to 1500mm


Side Mounted Transparent Glass Tube for high pressure application

Pointer Type Mechanical Level Gauge

0 to 1.5 meters and 0 to 2.5 meter


Top Mounited Mechanical Level Indication with ease in mounting (in PP construction)

Follower Float

0 to 500 mm to 0-1500mm

Approx 2%

Side or top mounted Mechanical level Indication having Magnetic Float

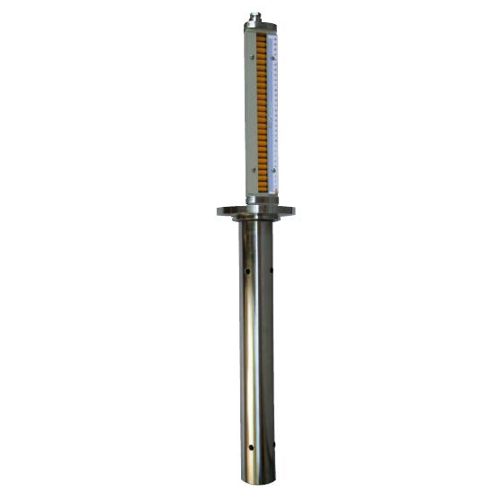

Bi-color Magnets

0 to 500 mm up to 0-1500 mm

Approx 4 mm

Side or top mounted Mechanical level Indication for Liquids using Rolling Magnets and Megnetic Float

Float and Board

0-2 meters up to 0-25 meters

Approx 5%

Float operated mechanical level Indicator for liquid storage tank

Float Type (Analogue Output)

0-300 mm up to 0-3000mm

Approx 3 mm

Magnetic Float Operated Liquid level Indicator using Bypass assembly or, Top Mounting Type In tanks

Capacitance Type (Analogue Output)

0-150 mm up to 0-15 meters

Approx 1%

Rod type or Rope type Sensor for Conductive or non-conductive liquids only

Poteniometric (Analogue Output)

0-200 mm to 0-3000 mm

Approx 0.5%

Perfectly suitable and acceptable for food and pharma application

Diaphragm type/ Submersible Type (Analogue Output))

Gravity pressure from 0-100mbar up to 0to 20 bar

Approx 1%

S.S Sensors and PP Cable-suitable for clear Liquids only.

Ultrasonic (Analogue Output)

100-27400 mm

Approx 1%

Non Contact Level Sensor is not suitable for tanks having vacuum, Foam, high temperature and high pressure configurable measuring range. Compact instrument and available with Hygienic design and Configurable measuring range.

Radar / Micro Wave (Analogue Output)

300-1000 mm to 300-3000 mm

Approx 0.5%

Non contact level sensor is suitable for almost all applications. Compact instrument and available with hygienic design and configurable measuring range


Application
: There are 4 typical applications for the level measuring Instruments

  • For level indication Mechanically, where any electrical or battery supply won't be required
  • For level sensing and digital indication of available level in the tank
  • For level Indication and transmitter for remote indication or, control application
  • Level measuring instruments are used very commonly in industries like chemical and petrochemical, paper and pulp, food and drugs, water transport and Beverage construction industries cement plants etc.


Note :To receive quick response, please provide your basic requirement details and max.Application information.
