Digital Level & Volume Indicator for Non Linear shaped tank

2500 INR

Get a Price/Quote

Product Details:

Frequency 50 - 60 Hertz (HZ)
Pole Type Single Pole
IP Rating IP65
Sensor Type Level Sensor, Pressure Transducer
Connectivity Type Wired (Screw Terminals or optional RS485)
Display Digital LED/LCD Display
Usage & Applications Level & Volume Monitoring in non-linear tanks
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Digital Level & Volume Indicator for Non Linear shaped tank Price And Quantity

Minimum Order Quantity 1 , , Piece
Price 2500 INR

Digital Level & Volume Indicator for Non Linear shaped tank Product Specifications

Switch Type Relay / Transistor Output
Measuring Range Customizable as per tank size
Mounting Type Wall / Panel Mount
Output Relay, Analog, Modbus
Current 4 - 20 m Ampere (amp)
Diameter Configurable based on sensor selection
Features Non-linear tank volume computation, digital display, industrial grade
Input Analog/4-20 mA or Digital
Operating Temperature -10C to +60C
Warranty No
Protection Level Short Circuit & Overload Protection
Installation Type Panel Mount / Field Mount
Phase Single Phase
Display Digital LED/LCD Display
Usage & Applications Level & Volume Monitoring in non-linear tanks
Application For Industrial Use
Accuracy 1% or better
Supply Voltage 230V AC / 24V DC
Dimension (L*W*H) 200 x 150 x 80 mm (typical)
Connectivity Type Wired (Screw Terminals or optional RS485)
IP Rating IP65
Product Type Volume Indicator for Non Linear shaped tank
Sensor Type Level Sensor, Pressure Transducer
Working Temperature 0C to 55C
Weight Approx. 1.2 kg
Frequency 50 - 60 Hertz (HZ)
Pole Type Single Pole
Pressure Type Hydrostatic or as per sensor used

Digital Level & Volume Indicator for Non Linear shaped tank Trade Information

Payment Terms Cheque
Supply Ability 1 , , Piece Pieces Per Day
Delivery Time 2 - 3 Week
Packaging Details Carton Box
Main Export Market(s) Western Europe, Australia, Eastern Europe, Middle East, Central America, Africa, South America, Asia, North America
Main Domestic Market All India

Product Description

Digital Level & Volume Indicator for Non Linear shaped tank

We provide Process Indicators and Process Indicating Controllers as per the clients demand & the process needs.

Input can be 4 to 20 mA, 0 to 10 V or, pulses, resistance etc.
Output can be Potential Free Contacts (Single / Two or, Four nos.) or, Re-transmitter etc.
Display will be LED 7 segment or, LCD
Power Supply can be 230 V AC, 110 V AC, 24 V DC or, 12 V DC
Mounting types can be Panel mounted, Wall Mounted or, Field mounted
Enclosure types can be IP 40, IP 54, IP 65 or, Flameproof

Note :To receive quick response, please provide your basic requirement details and max.Application information.

Versatile Tank Compatibility

This indicator is purpose-built for non-linear or irregularly shaped tanks, providing tailored volume computations through customizable tank parameters. Whether your tank holds water, oil, or chemicals, its sensor and pressure transducer options ensure precise readings, supporting a wide variety of industrial fluids and environments.

Reliable Industrial Performance

Designed for demanding industrial use, the device boasts a rapid response time, high accuracy (1% or better), and robust protection against short circuits and overloads. Flexible installation optionsincluding wall, panel, or field mountinghelp it fit seamlessly into existing systems. The enclosures IP65 rating and material selections (ABS, polycarbonate, or metal) further enhance durability.

Flexible User Interface & Data Logging

Select from a membrane keypad or touchscreen according to your operational needs. The indicator permits efficient data handling through optional onboard memory or remote logging. Configurable alarm outputs, digital LED/LCD display, and multiple outputs (relay, analog, Modbus) contribute to comprehensive and accessible tank monitoring.

FAQs of Digital Level & Volume Indicator for Non Linear shaped tank:

Q: How does the indicator compensate for non-linear or irregular tank shapes?

A: The device allows tank parameter programming, enabling it to perform non-linear volume computations that match the unique geometry of your tank. This ensures that level-to-volume conversion remains accurate, regardless of irregularities in tank shape.

Q: What types of liquids can this level & volume indicator monitor?

A: It is compatible with water, oil, and many chemicals. However, for specific chemical applications, consulting the manufacturer is recommended to ensure material compatibility with the sensor and enclosure.

Q: When and where should I use this indicator?

A: The indicator is ideal for industrial scenarios where non-linear or custom-shaped tanks require precise level and volume monitoring. It is suitable for both panel and wall mounting, and can be deployed outdoors or in harsh indoor environments due to its IP65 protection.

Q: What is the process for calibrating the device?

A: Calibration can be performed either by the user onsite or by the factory prior to delivery. The process typically involves inputting reference points and tank parameters through the interface, guided by the product manual or support team.

Q: What are the advantages of optional onboard memory or remote data logging?

A: Optional data logging allows users to store or transmit historical level and volume data, supporting trend analysis and regulatory compliance. You can choose onboard memory for local storage or remote solutions for centralized monitoring.

Q: How does the alarm output benefit industrial users?

A: Configurable high/low level alarms notify operators of critical conditions, helping to prevent overflows, dry running, or other unsafe events. Relay or transistor outputs can connect directly to external systems for automated responses.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Customized Process Indicator and Controllers' category

Digital Pressure Indicator with Integral Pressure Sensor Price Range : 5000.00 - 30000.00 INR/Piece Minimum Order Quantity : 1 Current : Max. 100 mA Application : Industrial Pressure Monitoring, Hydraulic & Pneumatic Systems Product Type : Digital Pressure Indicator with Integral Pressure Sensor Frequency : DC Operation Operating Temperature : 10C to +60C Input : Pressure (via Integral Sensor) Features : Compact Design, High Accuracy, Realtime Monitoring, Robust Casing Measuring Range : 0 to 1000 bar (customizable as per requirement) Output : 420 mA / RS485 / Relay (optional) Mounting Type : Panel / Wall Mount Display : 4 Digit, 7 Segment LED Usage & Applications : Industrial, Process Control, Machine Automation Installation Type : Panel / Wall Mounted Protection Level : IP65 Phase : Single Phase IP Rating : IP65 Sensor Type : Piezoresistive / Strain Gauge (integral) Supply Voltage : 24 V DC (standard), 12 V DC (optional) Accuracy : 0.5% F.S. (typical) Dimension (L*W*H) : 120 mm x 70 mm x 65 mm Connectivity Type : Wired Weight : Approx. 350 g Working Temperature : 10C to +60C Switch Type : Electronic / Membrane Switch (if applicable) Pole Type : Single Diameter : Approx. 70 mm Pressure Type : Gauge / Absolute / Differential (as required)

Send Inquiry

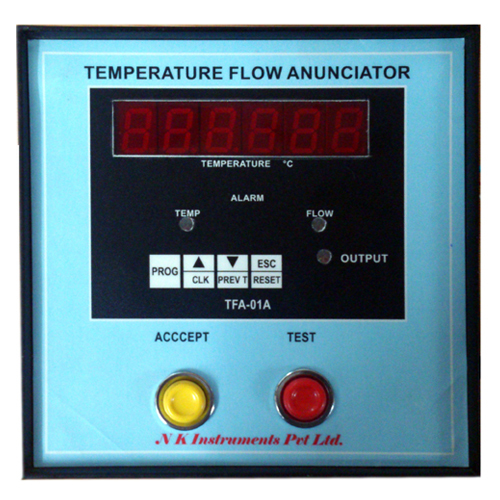

Annunciator for Flow & Temperature Price Range : 2000.00 - 20000.00 INR/Piece Minimum Order Quantity : 1 Current : 5A Application : Industrial Process Monitoring, Water Treatment, HVAC Product Type : Annunciator for Flow & Temperature Frequency : 50/60 Hz Operating Temperature : 10C to 60C Input : 420mA, RTD Features : Multiple channel annunciation, LED/Buzzer indication, High reliability Measuring Range : 0.1 to 100 LPM (Flow), 40C to 150C (Temperature) Output : Relay, Buzzer, Visual Indication Mounting Type : Wall or Panel Mount Display : LED & LCD Usage & Applications : Alarm & indication for abnormal flow/temperature Installation Type : Panel Mounted Protection Level : Other, Overcurrent & Overvoltage Phase : Single Phase IP Rating : IP65 Sensor Type : Thermistor, Flow Sensor Supply Voltage : 230V AC Accuracy : Flow: 2%, Temp: 0.5C Dimension (L*W*H) : 180mm x 150mm x 80mm Connectivity Type : Terminal Block Weight : 1.2 kg Working Temperature : 10C to 60C Switch Type : Solid State & Mechanical Pole Type : Single Pole Diameter : Selectable, typically 15mm to 50mm Pressure Type : Differential and Absolute
