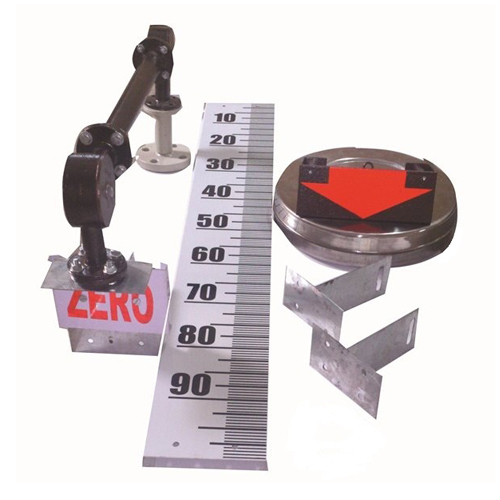

Float & Board Level Gauge with wire

Type

Range

Accuracy

Specification

Tubular Glass

0-300mm up to 0-1500 mm

Side Mounted Transparent Glass Tube for liquids

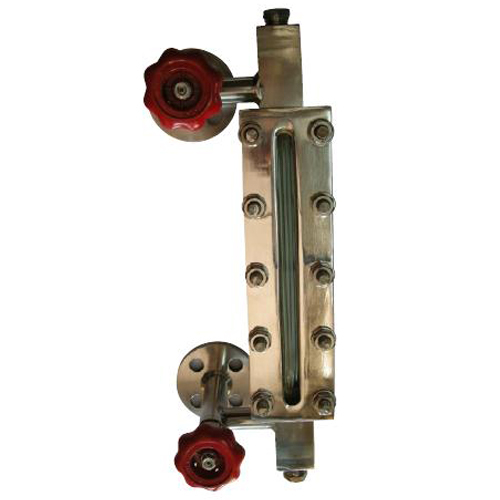

Reflex

150mm up to 1500mm

Side Mounted Transparent Glass Tube for high pressure application

Pointer Type Mechanical Level Gauge

0 to 1.5 meters and 0 to 2.5 meter

Top Mounited Mechanical Level Indication with ease in mounting (in PP construction)

Follower Float

0 to 500 mm to 0-1500mm

Approx 2%

Side or top mounted Mechanical level Indication having Magnetic Float

Bi-color Magnets

0 to 500 mm up to 0-1500 mm

Approx 4 mm

Side or top mounted Mechanical level Indication for Liquids using Rolling Magnets and Megnetic Float

Float and Board

0-2 meters up to 0-25 meters

Approx 5%

Float operated mechanical level Indicator for liquid storage tank

Float Type (Analogue Output)

0-300 mm up to 0-3000mm

Approx 3 mm

Magnetic Float Operated Liquid level Indicator using Bypass assembly or, Top Mounting Type In tanks

Capacitance Type (Analogue Output)

0-150 mm up to 0-15 meters

Approx 1%

Rod type or Rope type Sensor for Conductive or non-conductive liquids only

Poteniometric (Analogue Output)

0-200 mm to 0-3000 mm

Approx 0.5%

Perfectly suitable and acceptable for food and pharma application

Diaphragm type/ Submersible Type (Analogue Output))

Gravity pressure from 0-100mbar up to 0to 20 bar

Approx 1%

S.S Sensors and PP Cable-suitable for clear Liquids only.

Ultrasonic (Analogue Output)

100-27400 mm

Approx 1%

Non Contact Level Sensor is not suitable for tanks having vacuum, Foam, high temperature and high pressure configurable measuring range. Compact instrument and available with Hygienic design and Configurable measuring range.

Radar / Micro Wave (Analogue Output)

300-1000 mm to 300-3000 mm

Approx 0.5%

Non contact level sensor is suitable for almost all applications. Compact instrument and available with hygienic design and configurable measuring range
