PP Cable Float Switches - Flange Mounting Version

Float type Level Switch with 2 Floats - Top mounte Price : 2,500 INR Minimum Order Quantity : 1 Product Type : Float type Level Switch with 2 Floats Weight : Approx. 150300 g Max. Voltage : 250V AC/DC Temperature Range : 10C to +80C Operating Temperature : 10C to +80C Mounting Type : Top Mount Circuit Type : SPST / SPDT Contact Resistance : 50 m Max. Current : 0.5A to 1A Finish Type : Corrosion Resistant Insulation Resistance : 100 M at 500V DC No Of Poles : Single/Double Automation Grade : Semiautomatic / Automatic Current Rating : 0.5A/1A Mechanical Life : 1,000,000 operations Number of Module : 2 Response Time : 50 ms Protection Level : IP65 / IP68 Rated Voltage : 230V AC Stoke : 10~20 mm

Vibrating Fork type Level Switches Price : 8100 INR/Piece Minimum Order Quantity : 1 Product Type : Conductivity type Level Switches Weight : Approx. 1.2 kg Max. Voltage : 250 VAC/30 VDC Temperature Range : 40C to +150C Operating Temperature : 40C to +150C Mounting Type : Threaded / Flanged Circuit Type : SPDT Contact Resistance : 100m Max. Current : 5A Finish Type : Polished Stainless Steel Insulation Resistance : 100M (at 500 VDC) No Of Poles : Single/Double Automation Grade : Automatic Current Rating : Max. 5A Mechanical Life : 1 million operations Number of Module : Single switch module Response Time : <0.5 seconds Protection Level : IP67 / IP68 Rated Voltage : 230 VAC / 24 VDC Stoke : Fixed fork length (typically 100 mm to 200 mm)

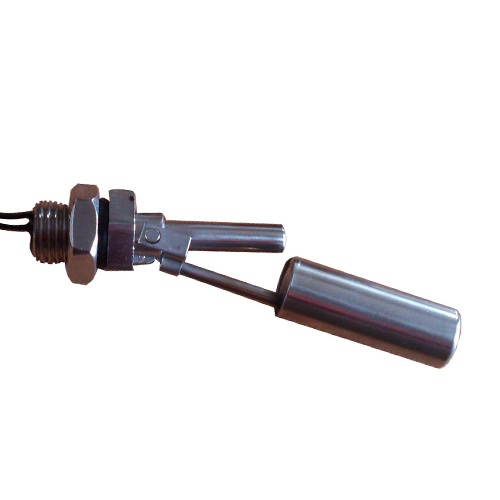

Side Mounted Miniature SS Float type Level Switch Price : 2500 INR Minimum Order Quantity : 1 Product Type : Side Mounted Miniature SS Float type Level Switch Weight : Approx. 80 grams Max. Voltage : 220 VAC Temperature Range : 10C to +100C Operating Temperature : 10C to +100C Mounting Type : Side Mounted Circuit Type : SPST Contact Resistance : Below 50 m Max. Current : 1A Finish Type : Polished Stainless Steel Insulation Resistance : Over 100 M at 500 VDC No Of Poles : Single Pole Automation Grade : Manual / Automatic Current Rating : 1A Mechanical Life : Above 2,000,000 operations Number of Module : Single Response Time : <10 ms Protection Level : IP65 Rated Voltage : 220 VAC Stoke : 10 mm

Conductivity type Level Switches Price : 4500 INR/Piece Minimum Order Quantity : 1 Product Type : Conductivity type Level Switches Weight : Approx. 400g Max. Voltage : 250 V AC Temperature Range : 0C to 60C Operating Temperature : 0C to 60C Mounting Type : Flange / Threaded Circuit Type : SPST (Single Pole Single Throw) Contact Resistance : 50 m Max. Current : 5A Finish Type : Corrosion Resistant Insulation Resistance : 100 M (at 500 V DC) No Of Poles : Single Pole Automation Grade : Automatic Current Rating : 5A Mechanical Life : 1,000,000 operations Number of Module : Single Response Time : < 1 second Protection Level : IP65 Rated Voltage : 220~250 V AC
