Velocity Meter - Insertion Paddle Wheel type F181

Velocity Meter - Insertion Paddle Wheel type F181
Velocity Meter - Insertion Paddle Wheel type F181
Send Inquiry
Product Code : F181
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces,
  • Price
  • 15,200 INR
Product Specifications
  • Product Type
  • Velocity Meter - Insertion
  • Working Temperature
  • 60 degree Celsius (oC)
  • Application
  • For Industrial Use
  • Accuracy
  • 1% of full flow capacity mm/m
  • Warranty
  • No
Product Description
Velocity Meter (Models: P-181 or. F-181)

  • Type of Meter : Insertion Paddle Wheel type Velocity Meter
  • Max. % of Solids  : 1% of fluid volume, non-abrasive, non-magnetic, <100 micron in dia. & length
  • Mounting   : Field or, Panel
  • Pipe Line size  : min. 15 mm up to 500 mm
  • Pressure drop : Less than 0.1 bar
  • Pulses  : 4 Pulses each rotation
  • Accuracy  : +/- 1% of Full Scale if velocity is more than 0.5 m/s
  • Repeatability : +/- 0.5%
  • Linearity   : +/- 2% of full scale
  • Enclosure  Weather proof IP 65
  • Gland   : PO7
  • Fitting material     : ABS, SS304 or, SS316
  • Fitting Type   Threaded, Flanged, Weld on Adaptor
  • Velocity range : from  0.5 to 5.0 MPS
  • Max. Operating Temperature : 60°C for PP Sensor with ABS fittings & 100°C for SS Sensor with SS Fitting
  • Sensor Cable Length   0.5 mtrs for Field Mounted Meter & 3 mtrs for Panel Mounted Meter
  • Paddle  : PVDF (Magnetic up to 100°C & Non Magnetic up to 80°C)
  • Indicator Housing   : Polycarbonate
  • O-rings/Pin : Viton / Hastealloy C
  • Sensor Rod    : PP or, SS316
  • Max. Working Pressure  : 7 kg/cm2 for PP Sensor with ABS fittings and 12 Kg/cm2 for SS Sensor with SS fitting.
  • Display    : 16 X 1 alpha-numeric LCD display with Backlight
  • Indicator unit dimensions  : 110 mm (H) X 110 mm (W) X 150 mm (D)
  • Field selectable Units: MPS
  • Supply : 230 V AC +/- 15%, 50 Hz

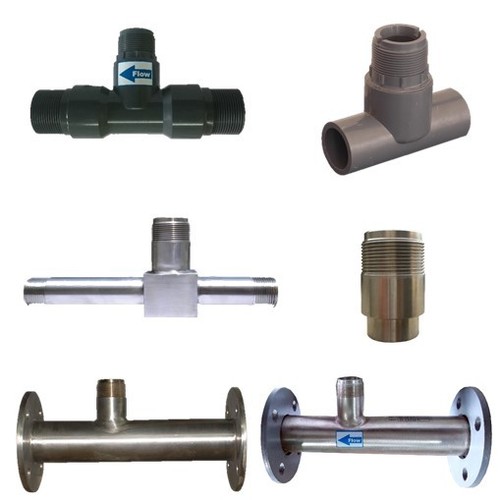

  • T Fitting  It is compulsory with PP or, SS 316 Flow Sensors (Selection from TYPE OF T-FITTINGS)

Note :To receive quick response, please provide your basic requirement details and max.Application information.
